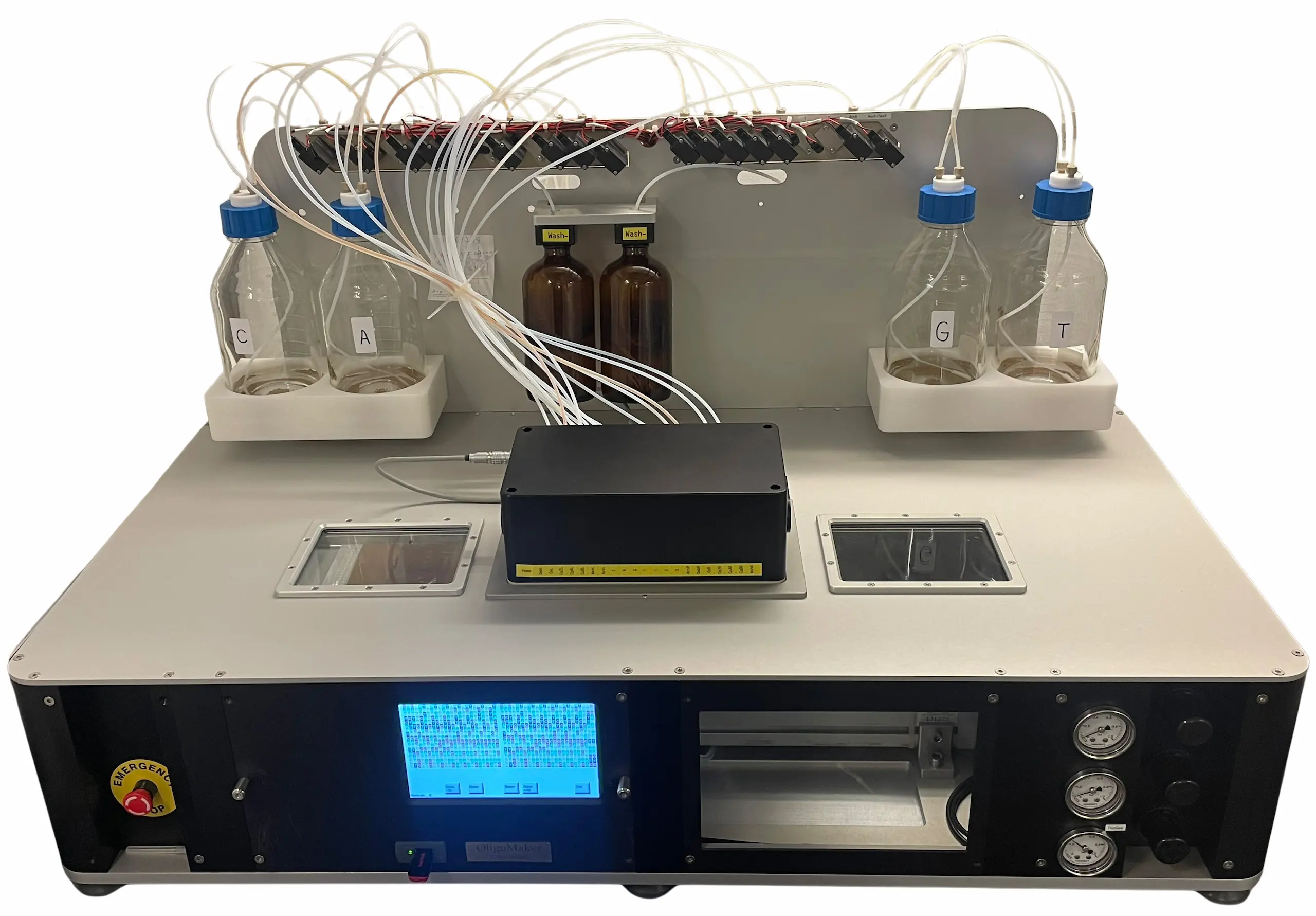

OligoMaker 768

Description

Instrument

Capacity 1 – 2 x 384-well plates – up to 768 primers in one run
Scale of synthesis 5, 10, 25 and 50 nmol scale
Support material Universal support
Standard Phosphoramidite positions 4 x 0,5L or 1L bottles
Standard 2 activator positions Activating in parallel – 2,5L or 4L
Standard 2 wash positions Washing in parallel – 2,5L or 4L
Standard 2 deblocking position Deblocking in parallel – 2,5L or 4L
Standard 2 Ox position Oxidizer – 2,5L or 4L
Standard Cap A position Capping simultaneously with Cap B – 2,5L or 4L
Standard Cap B position Capping simultaneously with Cap A – 2,5L or 4L
Option DEA position Deprotection – 450-ml
2 Free position Custom specified
Automatic Purge and Wash System Automatically wash and purge all nuzzles after synthesis
Pressure on reagents Each bottle can be pressurized and depressurized individually
Only one gas connection One gas for making pressure in the bottles and purging during synthesis
Instrument – and Cleaning 1000 x 550 x 600 mm (L x W x H) – Design with large straight surfaces
Maintenance Replacing valves and tubing within a few minutes
Spare parts Spare parts are in stock
Power 110/115V or 220/240V
Safety Emergency Stop
QC All instruments undergo a strict quality control process in our lab
Certification CE marking
Service ON-call service

Software

Touch screen 10″ touch screen
Operation Instrument is operating as stand-alone
IUPAC codes Mixed bases are not available
Chemical consumption Adjustable
Coupling time Adjustable
